LEARN KERF DOORS

From one door to your own toolpaths.

Six short paths: two to get cutting, four to make it yours — your own profiles, patterns, door styles and toolpaths. Dialog names and defaults are the ones you see in Fusion.

NEWFour whole orders, from the order file to G-code→
VIDEO TUTORIALS

Eight short videos, one idea each.

Each one plays right here, with captions. Same dialogs, same defaults as in Fusion.

Tutorial 01 thumbnail: Build your first door
TUTORIAL 011:28
Build your first door
Pick a groove profile, type the width and the height, press OK: the door is modelled with its groove, panel and chamfer.
Tutorial 02 thumbnail: Build a whole order
TUTORIAL 021:36
Build a whole order
One row per door size, or load a CSV / Excel file. Kerf Doors nests the doors onto your sheets and builds the sheets.
Tutorial 03 thumbnail: Draw your own groove profile
TUTORIAL 031:18
Draw your own groove profile
Sketch one closed shape with Fusion's own tools. Save Custom Profile checks it and builds the door live.
Tutorial 04 thumbnail: Save a CAM template
TUTORIAL 041:15
Save a CAM template
Save a tuned Manufacture setup as a template. It re-applies to any door size of that design.
Tutorial 05 thumbnail: Browse the profiles, add a centre pattern
TUTORIAL 051:25
Browse the profiles, add a centre pattern
Browse the built-in groove profiles, then run reeds, flutes, V grooves or a star across the panel.
Tutorial 06 thumbnail: Create your own centre pattern
TUTORIAL 061:03
Create your own centre pattern
Save as: Centre pattern. A line pattern repeats one drawn section; a shape is engraved with a V-bit or a ball.
Tutorial 07 thumbnail: Door recipes: a profile and a pattern under one name
TUTORIAL 070:58
Door recipes: a profile and a pattern under one name
A recipe saves profile, offset, chamfer, board thickness, pattern and CAM template, and is chosen in an order like a design.
Tutorial 08 thumbnail: Post the G-code
TUTORIAL 081:21
Post the G-code
Post the sheets as G-code, with a RUN-ORDER.txt for the operator. The cutout and the tab release come last, as they must.
WHOLE ORDERS · TUTORIALS 09–14

From the order file to G-code.

Four kitchen orders, start to finish: load the order file, check the cutters, nest the sheets and post the G-code. Two more go deeper into the line patterns these orders use.

Tutorial 11 thumbnail: Order to G-code: your own groove
TUTORIAL 112:54
Order to G-code: your own groove
Thirteen doors in a groove profile drawn in the shop, from the order file to G-code for two sheets.
Tutorial 12 thumbnail: Order to G-code: a library profile
TUTORIAL 122:08
Order to G-code: a library profile
Twelve doors in 302-Boston from the built-in library, from the order file to G-code for two sheets.
Tutorial 13 thumbnail: Order to G-code: a groove with slots
TUTORIAL 131:57
Order to G-code: a groove with slots
Eleven 108-ShakerRecessed doors with L05 slots in every panel, from the order file to G-code for two sheets.
Tutorial 14 thumbnail: Order to G-code: coves, no groove
TUTORIAL 141:41
Order to G-code: coves, no groove
Eleven NoGroove doors with L03 coves from edge to edge, nested on one sheet and posted as G-code.
Tutorial 09 thumbnail: Line patterns in depth
TUTORIAL 092:34
Line patterns in depth
Five line patterns, L01 to L05, and the four values that place them: the gap, the spacing, the direction and the leftover.
Tutorial 10 thumbnail: Pattern-only doors and the star
TUTORIAL 102:06
Pattern-only doors and the star
NoGroove drops the groove ring, so the pattern runs across the whole door. And the S01 star, engraved with a V-bit.
IN TUTORIALS 09 AND 10
  • L01 and L02: reeds, 12.7 and 19.05 mm
  • L03: coves with 3 mm flats
  • L04: V grooves with 3 mm flats
  • L05: slots, 12 × 6 mm
  • NoGroove: the pattern on the whole door
  • S01: a star, engraved with a V-bit

All of these come built in.

PRO · FOR ORDERS
The whole order: table in, nested doors and toolpaths out.
  • ✓ Batch orders — table or CSV / Excel
  • ✓ Nesting on all sheets
  • ✓ Custom profiles with live preview
  • ✓ CAM templates, saved and applied

30 days free, then USD 20 a month.

Start the free trial →
01

One door

Your first door in Fusion, with its toolpaths, in a few minutes.

Watch tutorial 01: Build your first door (1:28)
  1. 1In the Design workspace, open the SOLID tab and click Build Doors in the Kerf Doors panel.
  2. 2Leave Operation Mode on Single door. Type Width and Height in mm (600 × 800 by default), Thickness 18 mm, Groove Offset 50 mm.
  3. 3Pick a design in Select Profile, say 101-BeadCove. The picture shows it in section; the Design line gives the groove size, a flush or recessed centre panel, and the chamfer.
  4. 4Leave CAM on Automatic toolpaths and click OK. The door is modelled and its setup is waiting in Manufacture.
  5. 5In Manufacture → Milling, click Post G-code, tick the setup and pick your post processor.
101-BEADCOVE · 400 × 700 MM · RENDER
101-BeadCove door front, 400 × 700 mm101-BeadCove groove in section, edges outlined
02

An order

A whole kitchen from a table or your spreadsheet: nested, with toolpaths and G-code.

Watch tutorial 02: Build a whole order (1:36)
  1. 1Open Build Doors, switch Operation Mode to Batch order, choose (new order) and name it.
  2. 2Fill the Doors table — design or recipe, width, length, quantity, thickness, offset, chamfer, CAM template, pattern — or click Load CSV / Excel.
  3. 3Check the sheet: 1220 × 2440 mm, 10 mm margin, 8 mm gap, 90° rotation on. Machine zero defaults to the lower-left corner, top of sheet.
  4. 4Leave Create CAM setups and Post G-code ticked, choose the post processor, click OK. One progress bar, with Cancel.
  5. 5Save order keeps it by name as plain CSV — it reopens here and still opens in Excel. The G-code waits in Downloads/KerfDoors/.

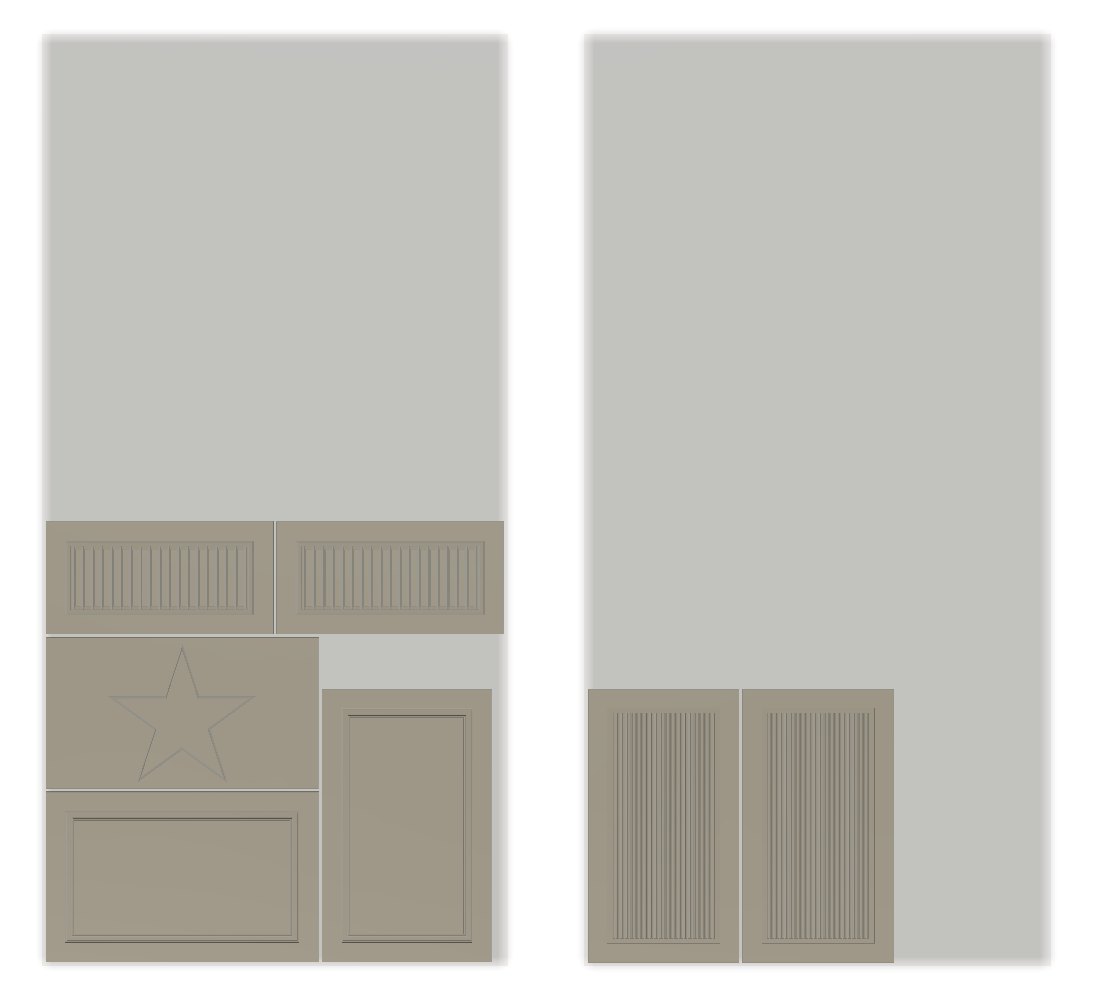

TWO SHEETS · FUSION, TOP VIEW
Top view in Autodesk Fusion of an order nested on two sheets
03

Your own groove profile

Draw the cross-section once in Fusion. Every door size follows it.

Watch tutorial 03: Draw your own groove profile (1:18)
  1. 1Click Create Custom Profile. Kerf Doors opens a guide sketch in Fusion — the door surface line, the sweep-path point, the axes — and an empty sketch.
  2. 2In the empty sketch, draw the groove's cross-section as one closed shape with Fusion's own sketch tools.
  3. 3Click Save Custom Profile. It checks the shape — one closed loop, a straight top edge — builds the door live while the dialog is open, and reads whether the centre panel is recessed.
  4. 4Set its offset (0 = the groove starts at the door edge), chamfer and thickness; they are remembered with the profile.
  5. 5Save. The profile and its machining recipe join every list like a built-in one.
A PROFILE DRAWN IN FUSION · DOUBLE_BUMP
double_bump groove in section: board edges outlined, door surface in amber
The door built from the double_bump profile
59.4 × 4.4 mm
recessed centre panel
built from the sketch
04

Your own centre pattern

Reeds, flutes, V grooves, slots — or a star or a monogram, engraved.

Watch tutorial 06: Create your own centre pattern (1:03)
  1. 1For a line pattern, draw one repeat of its section the way you draw a groove: a reed, a flute, a V, a slot, anything.
  2. 2For a shape, draw any drawing — a star, a monogram. It is engraved along its lines with a V-bit or a ball; its depth follows from the groove width.
  3. 3In Save Custom Profile, set Save as: Centre pattern. The dialog shows which cutters will cut one repeat.
  4. 4On a door, set the gap to the main groove (negative runs it into the groove), the spacing and the direction.
  5. 5Use it on any grooved door — or on NoGroove to cover the whole door.
LINE PATTERN · SHAPE
A door with a line pattern drawn in Fusion A slab door with an engraved star
05

Your own door style

Save the whole door as a recipe and order it by name.

Watch tutorial 07: Door recipes: a profile and a pattern under one name (0:58)
  1. 1Set a door up the way your shop makes it: profile, offset, chamfer, board thickness, pattern with its values, CAM template.
  2. 2Save it as a recipe, under one name.
  3. 3In an order, choose the recipe in the design column, like any design.
  4. 4Any cell you fill in on that row still wins over the recipe — change the thickness for one row, keep the rest.
  5. 5Two ship as examples: Shaker-Reeded and Bevel-VGrooved.
RECIPES · SHAKER-REEDED · BEVEL-VGROOVED
Recipe Shaker-Reeded Recipe Bevel-VGrooved
06

Your own toolpaths

Tune a setup once. Every door of that design reuses it, at any size.

Watch tutorial 04: Save a CAM template (1:15)
  1. 1Build a door with CAM, open it in Manufacture and tune the setup: tools, feeds, strategies, order.
  2. 2In Milling → Kerf Doors, click Save CAM Template. Pick the Setup and the Design, name it and note the tools and purpose.
  3. 3It records what each selection meant on the door — so far in from the groove path, the chamfer edges, the tabs — not Fusion entity ids.
  4. 4So it re-applies to any door size of that design. Choose it per order row, or make it the design's default.
  5. 5Post with Post G-code: one file per tool per sheet, cutout and tab release in files of their own.

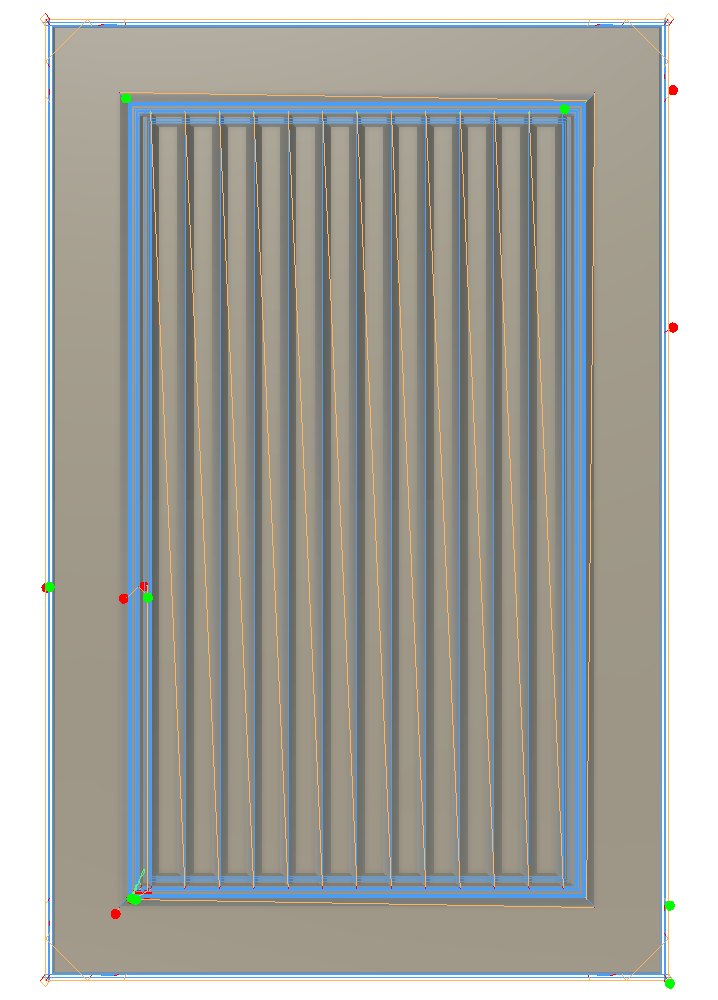

TOOLPATHS · FUSION MANUFACTURE
Top view of automatic toolpaths on a V-grooved door in the Fusion Manufacture workspace
AFTER A RUN

What a run leaves behind.

In the design

One component per sheet, named like Sheet 1 (1220 x 2440 x 18 mm), with a see-through board and its doors, named like 302-Boston 396x715 S1-3. The timeline groups each sheet.

In Manufacture

One setup per sheet with its toolpaths, and an NC program per output file in the NC Programs folder, named like the file.

On disk

Downloads/KerfDoors/‹time›_‹order›/
  S01_01_T…_grooves.nc … S01_07_T…_release.nc
  RUN-ORDER.txt · S01_RUN-ORDER.txt
Documents/KerfDoors_Logs/ · KerfDoors_Settings/
THE ORDER FILE

CSV / Excel cheat sheet.

One row per door size. Profile takes a design or a recipe, built-in or your own. Only Profile, Width and Length are required. Saved orders are plain CSV.

COLUMNALSO ACCEPTEDMEANING
ProfileDesign, DXFThe groove design. Required.
WidthWDoor width, mm. Required.
LengthHeight, H, LDoor length, mm. Required.
QuantityQty, CountWhole number, default 1.
ThicknessTmm, default 18.
OffsetGroove offset, InsetDoor edge to groove path, mm, default 50.
ChamferOuterChamferTRUE / FALSE; blank = the design's setting.
CamTemplateTemplate, CAMA saved template's name; blank = automatic toolpaths.
Pattern—A centre pattern, e.g. L01-Reeds or your own; blank = none.
SAMPLE-ORDER.CSV
Profile,Width,Length,Quantity,Thickness,Offset,ChamferOuter,CamTemplate,Pattern
101-BeadCove,396,715,2,18,50,,,
108-ShakerRecessed,496,715,4,18,60,TRUE,,
104-SmallBeadOgee,596,315,3,18,50,FALSE,,
NoGroove,396,715,2,18,,,,L01-Reeds
Download sample-order.csv
Rows that could not be built are listed at the end of the run, never silently dropped.
STRAIGHT ANSWERS

Before you install.

Does it need the internet?

Not for the work itself. The only network call is the App Store licence check: once per Fusion session, then offline for a day. No analytics.

Inches?

Millimetres throughout. Trade inch names appear only where the trade uses them, like the 3/8 in frame-and-panel set.

Five-piece doors?

No. Kerf Doors makes one-piece routed MDF doors. Five-piece frame-and-panel joinery, hinge boring and hardware are not what it does.

Does it drive my router?

No. It writes G-code files through your own post processor; you run them on the machine as you do today.

Where do my files live?

On your computer, in Documents/KerfDoors_Settings: profiles, orders, templates, settings and licence. No cloud storage.

Which CAD?

Autodesk Fusion only, on Windows and macOS. English.

Ready for the first door?

Start the 30-day free trial, build one door, then try a whole order. Questions: support@kerf360.com
