LEARN KERF

From six rectangles to your own G-code.

Nine short tutorials, a short for every sketch code and drawn marker, and four paths that follow a job from the first cabinet to the machine. Every clip was recorded in Autodesk Fusion; tutorials 01 to 09 in Kerf 2.3.2, 10 to 14 in Kerf 2.4.

Watch the tutorials Browse the 46 codes
A kitchen built in Kerf: sage-green cabinets, a marble-topped island, two windows and a door Watch the walkthrough1:47
KITCHEN WALKTHROUGH

A whole kitchen, room included.

One plan, one build: the floor, the walls, two windows and a door, a wall run with its appliances and a stone island, in the Sage & Brass theme. Watch Kerf put it together, step by step.

Room shellIslandAppliancesKerf Theme
NEW IN KERF 2.4 – 2.6

What's new in Kerf.

Five short videos on what came after 2.3.2: how every cabinet is built, set once in your Shop Standard, a new drawer code, and four new outputs from the Cut List. The list beside them names the rest, up to Kerf 2.6.1.

Tutorial 10 thumbnail: What's new in Kerf, October 2026
TUTORIAL 10NEW1:28
What's new in Kerf, October 2026
How every cabinet is built, set once in your Shop Standard, and four new outputs from the Cut List.
Shop Standard · Cut List
Tutorial 11 thumbnail: Carcass construction
TUTORIAL 11NEW1:54
Carcass construction
Pick how every cabinet goes together: continuous sides, stretcher rails instead of a top, and a grooved back.
Edit Shop Standard
Tutorial 12 thumbnail: Dowel and confirmat joints
TUTORIAL 12NEW1:39
Dowel and confirmat joints
Set the joint once in your Shop Standard: every carcass gets its face bores, edge bores and pilots.
Carcass joints
Tutorial 13 thumbnail: Plinths and drawer stacks
TUTORIAL 13NEW1:32
Plinths and drawer stacks
Build the toekick as one strip per run, and size each wooden drawer front with one code.
TK plinth · D150/300/300
Tutorial 14 thumbnail: Four new shop outputs
TUTORIAL 14NEW1:36
Four new shop outputs
A machining list, part drawings, one DXF per part and a step-by-step cut preview, all from the Cut List.
Generate Cut List · Outputs
ALSO NEW, UP TO KERF 2.6.1
  • Stacked cabinets: (…)+(…)+(…)
  • Sketch codes in words: 3 DRAWERS
  • Kitchen Motion: right-click to open
  • 3D Viewer for your customer
  • Edit Cabinet, rebuild in place
  • Kitchen Drawings: plan, elevations, sections
  • Load Plan for the delivery truck
  • Handles, hardware, a design check
  • Wardrobes and magic corners
  • Regional standards, Arabic dialogs

Kerf 2.6.1 is the current version, on the Autodesk App Store.

VIDEO TUTORIALS

Nine tutorials, one job.

Each one plays here, with captions: a cabinet, a kitchen, the codes, the finishes, then the cut list, the quote, the G-code and the photos.

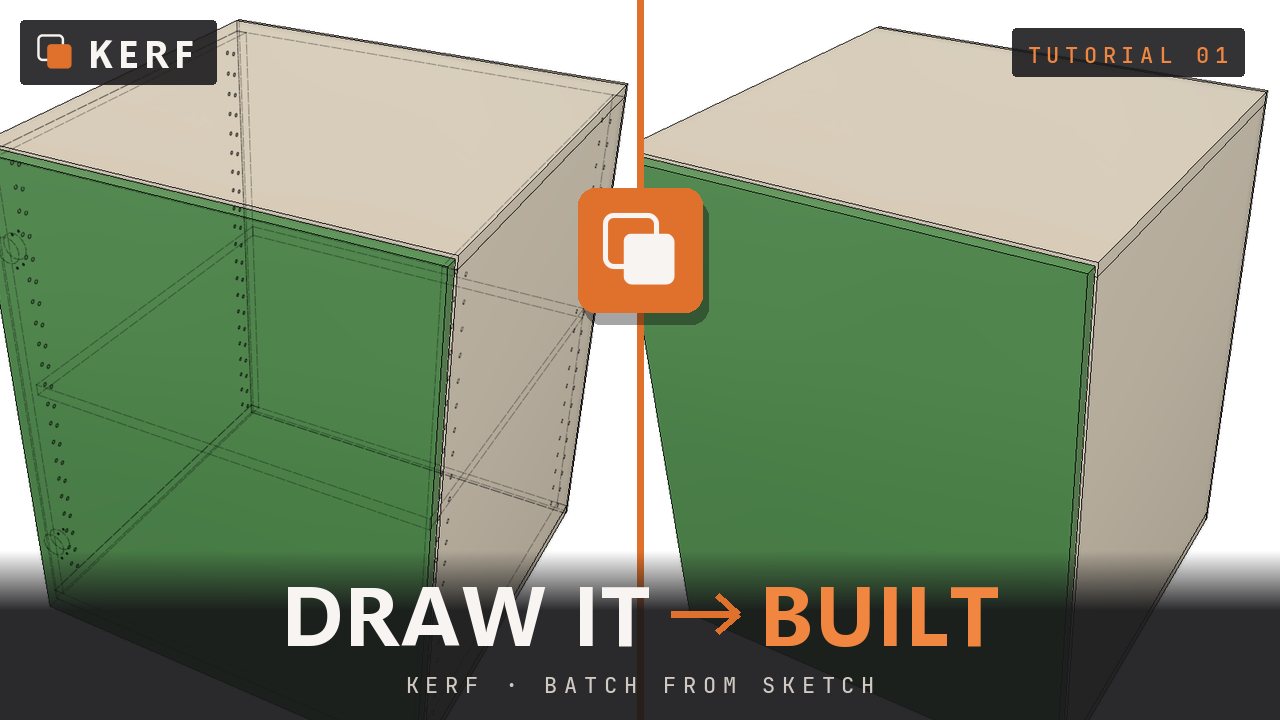

Tutorial 01 thumbnail: Your first cabinet
TUTORIAL 011:31
Your first cabinet
Draw its footprint, set the height, press OK: a complete cabinet with its door, shelf and drilling.
Kerf · Batch from Sketch

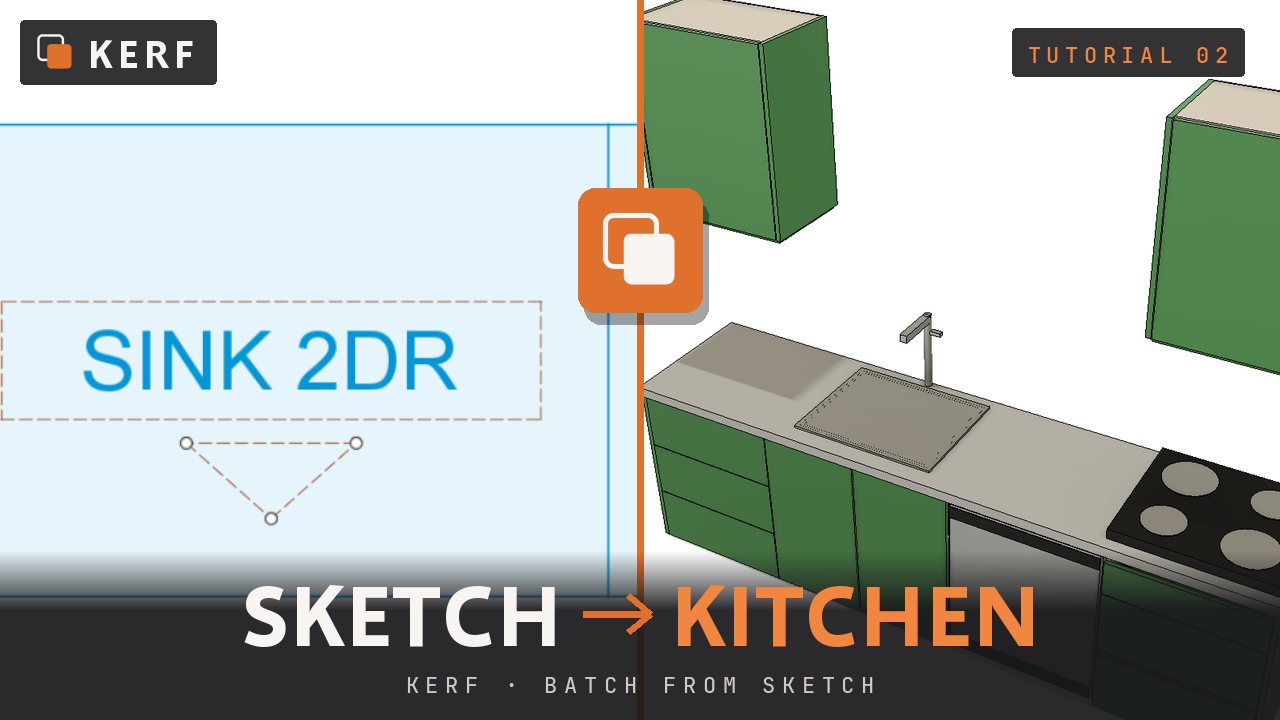

Tutorial 02 thumbnail: Draw it, build it
TUTORIAL 021:08
Draw it, build it
Sketch one rectangle per cabinet, write codes inside, select them on the Batch tab: every cabinet builds in one go.
Kerf · Batch from Sketch

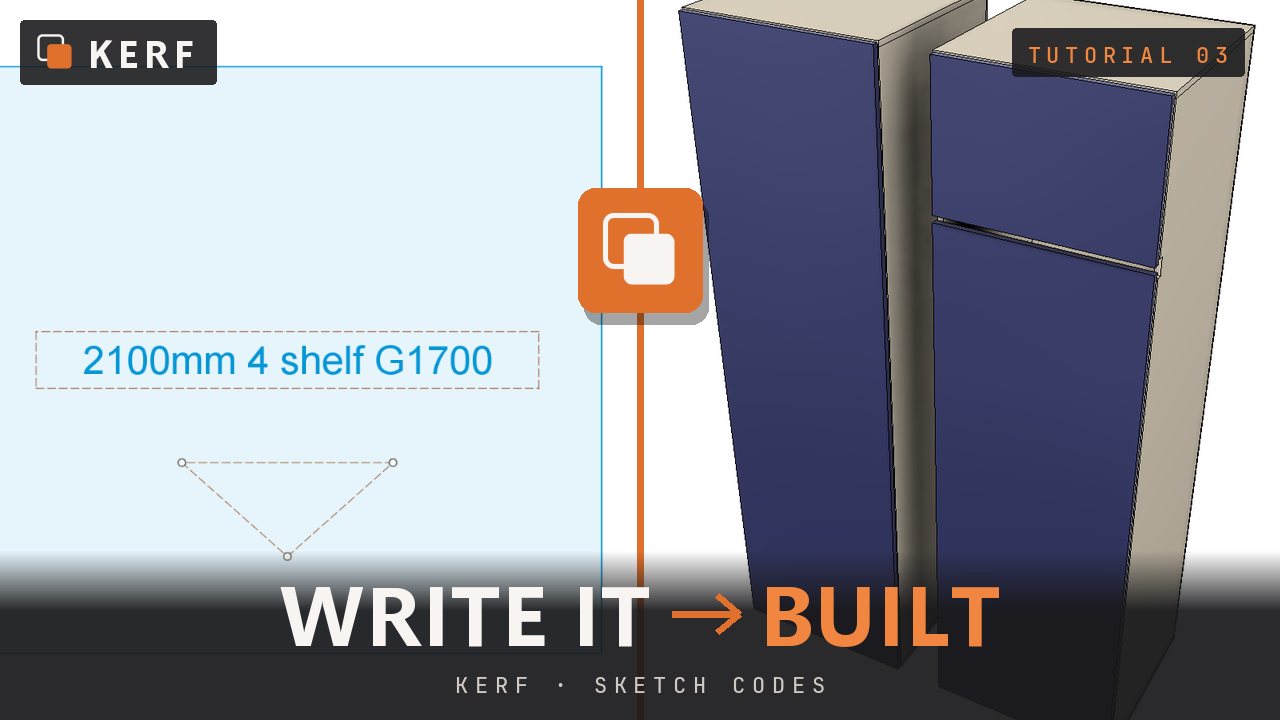

Tutorial 03 thumbnail: Writing sketch codes
TUTORIAL 031:17
Writing sketch codes
Type codes inside a rectangle with Fusion's Text tool. Each one overrides the dialog for that cabinet only.
Sketch text codes

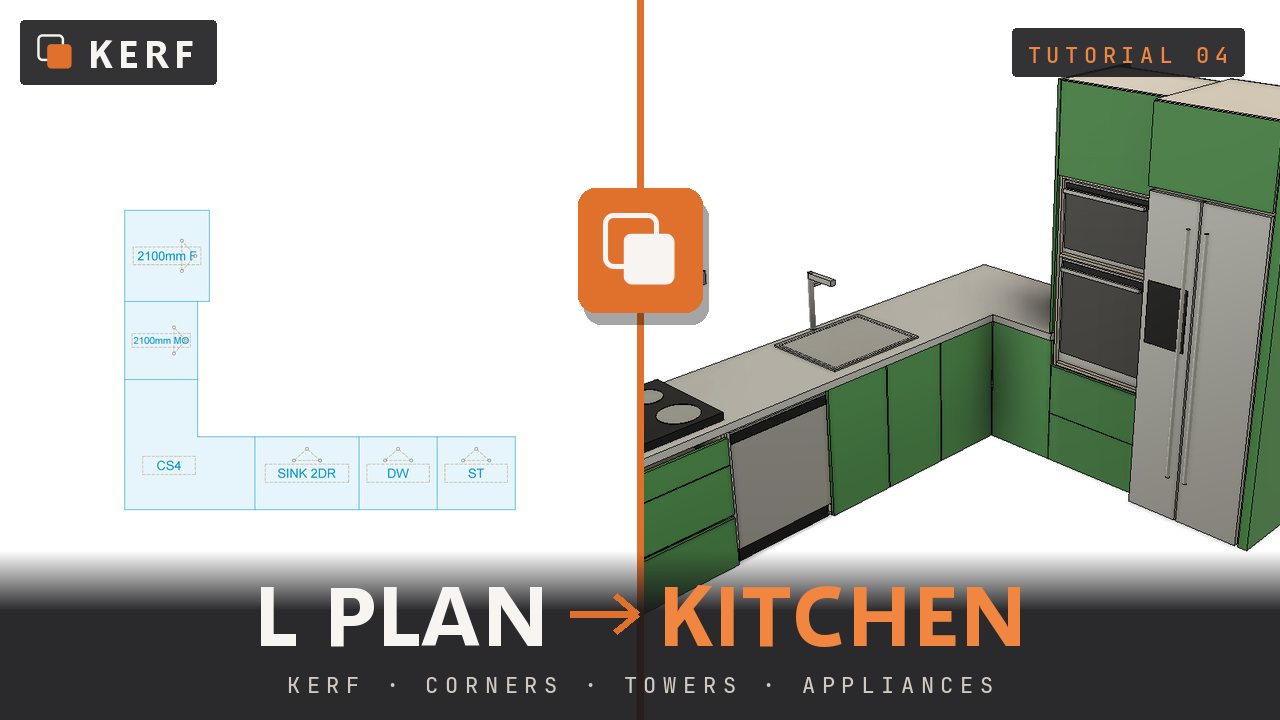

Tutorial 04 thumbnail: Corners, towers and appliances
TUTORIAL 041:16
Corners, towers and appliances
An L-shaped profile for the corner, one code per tower and appliance, and Place Appliances fills every slot.
Corners · towers · appliances

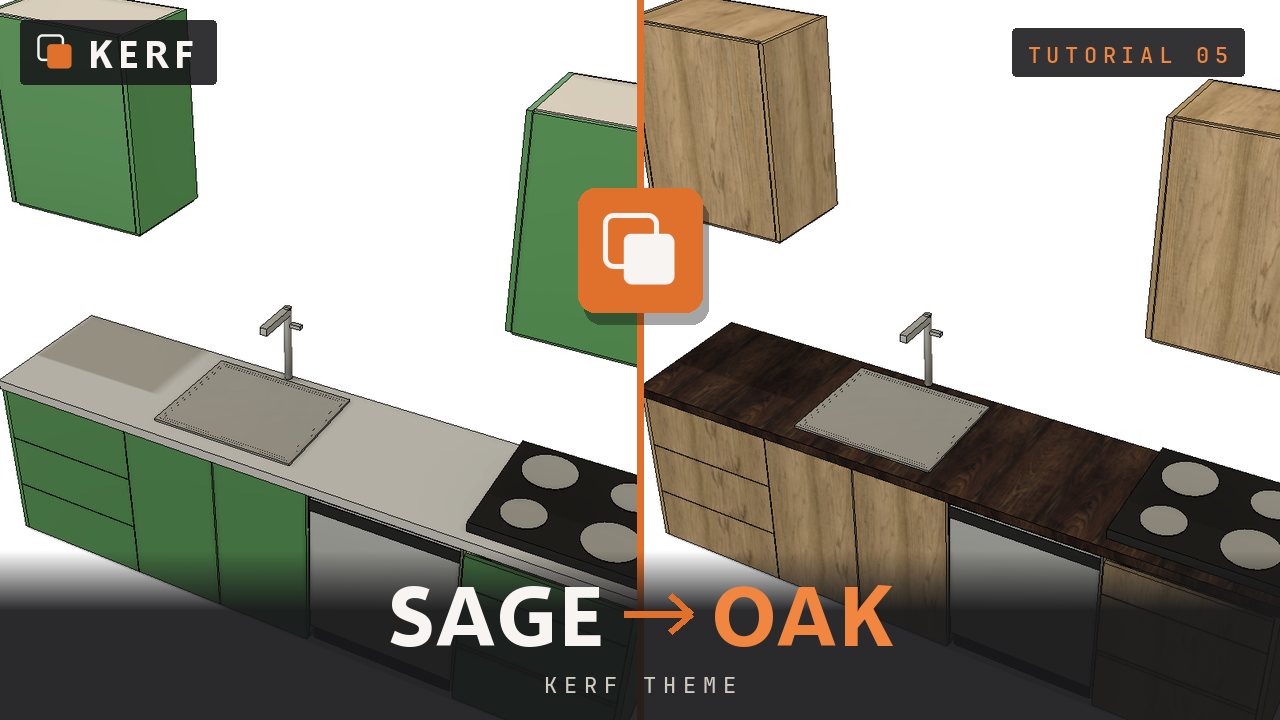

Tutorial 05 thumbnail: Kerf Theme
TUTORIAL 050:58
Kerf Theme
Recolour the whole kitchen by zone: fronts, carcass, glass, aluminium and countertop, in one palette.
Kerf Theme

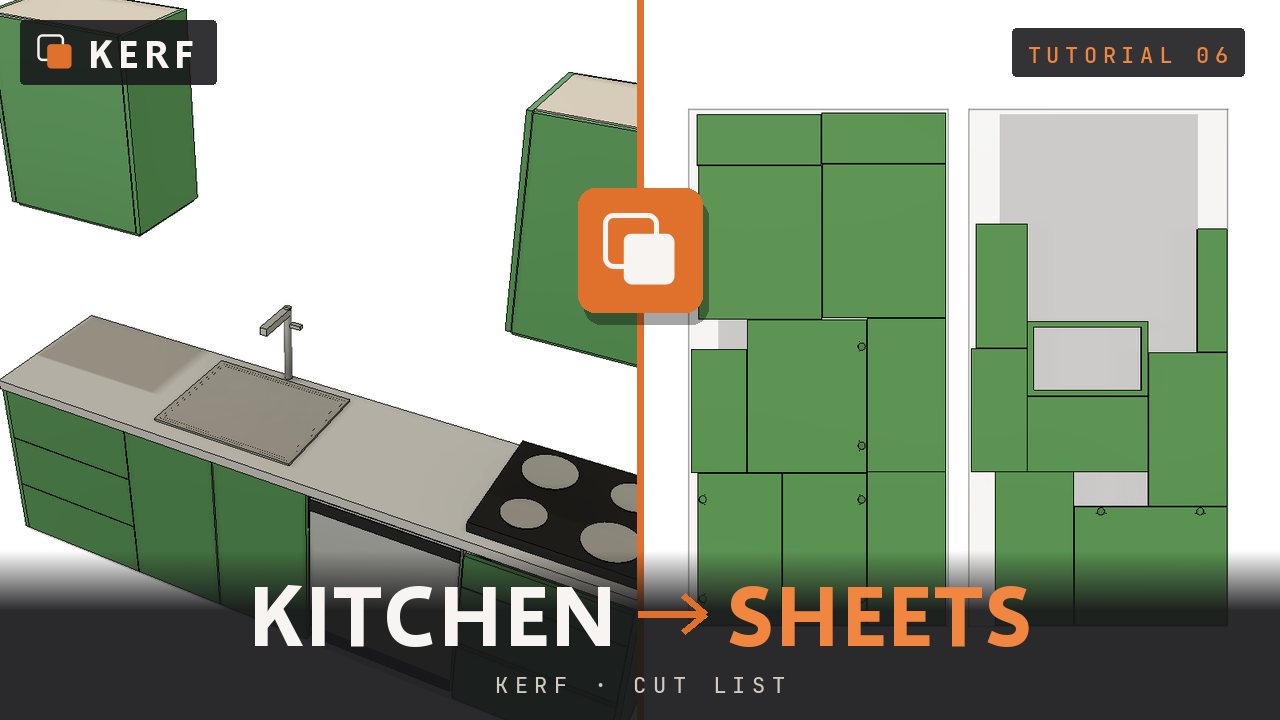

Tutorial 06 thumbnail: Cut list, nesting and paperwork
TUTORIAL 061:13
Cut list, nesting and paperwork
Every part nested onto sheets in the design, with the nest map, labels, assembly sheets and supplier order.
Cut List
Tutorial 07 thumbnail: Price the job

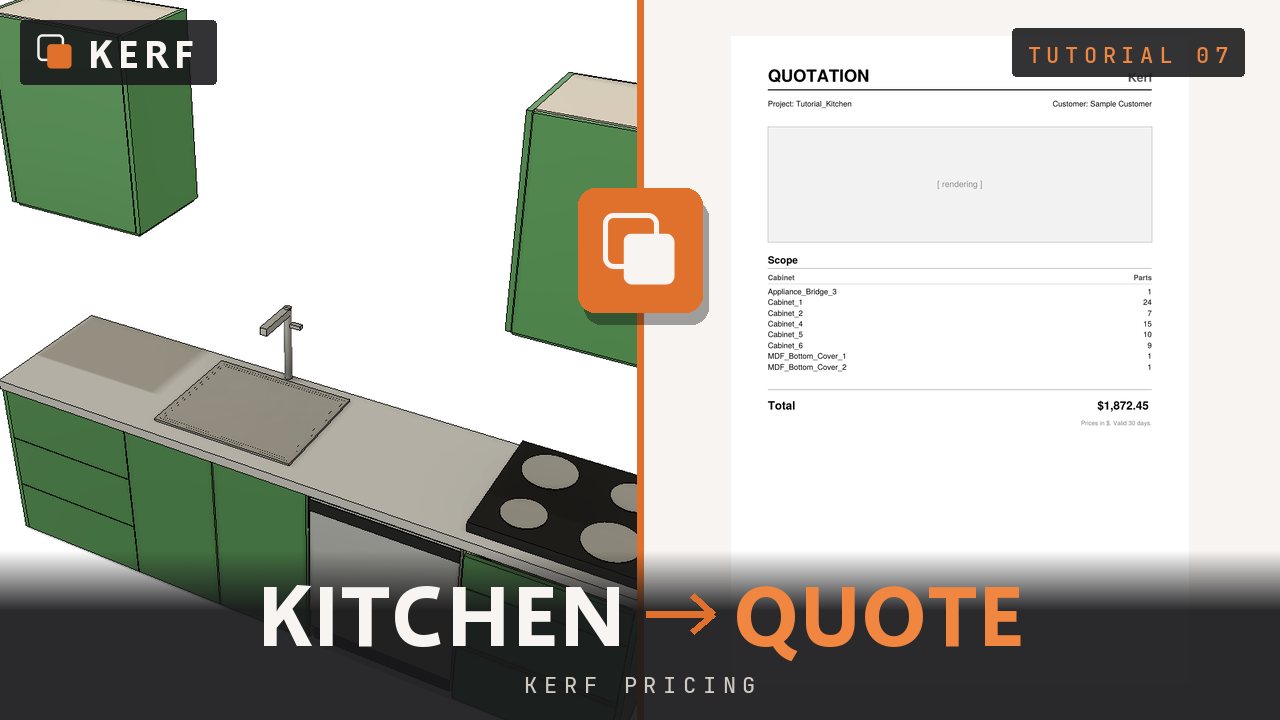

TUTORIAL 071:14
Price the job
A customer quote.pdf and an internal costing.csv, with material yield from a real nesting run.
Kerf Pricing

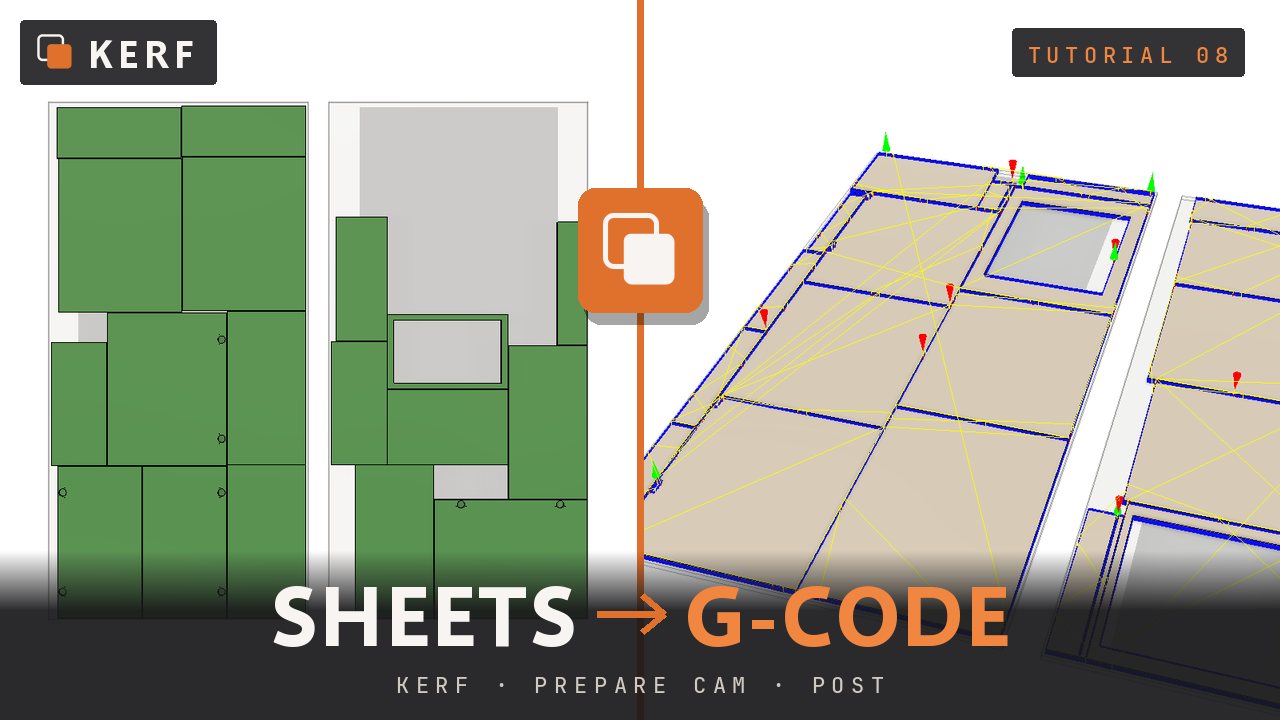

Tutorial 08 thumbnail: Prepare CAM and post G-code
TUTORIAL 081:09
Prepare CAM and post G-code
One Manufacture setup per sheet, drilling first, then the cutouts, and one G-code file per tool.
Prepare CAM · Post G-code
Tutorial 09 thumbnail: Photo Shoot and AI renders
TUTORIAL 091:35
Photo Shoot and AI renders
Frame the kitchen from its own geometry, then render every frame from one reference photo.
Photo Shoot

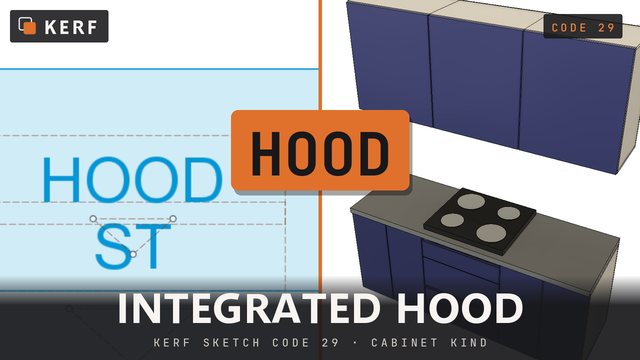

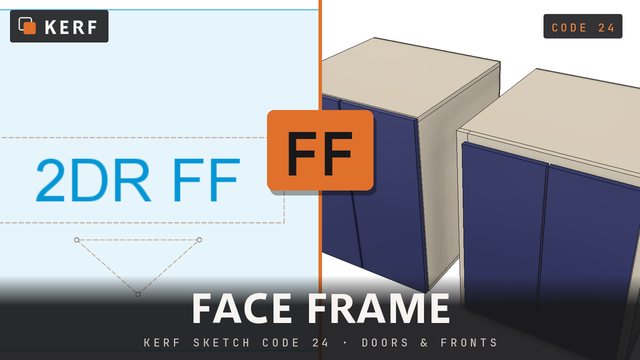

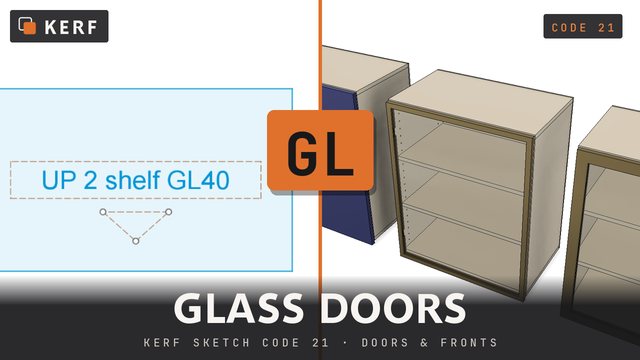

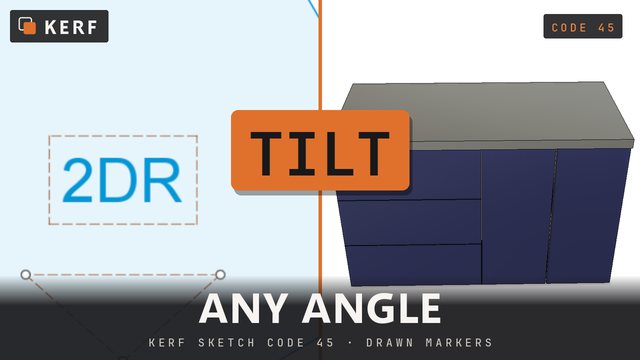

SKETCH CODES

46 shorts, one per code.

Write it, see what Kerf reads, watch it build. Each short is a real build in Fusion, under a minute long. Every code on one page: the cheat sheet →

46 of 46 codes

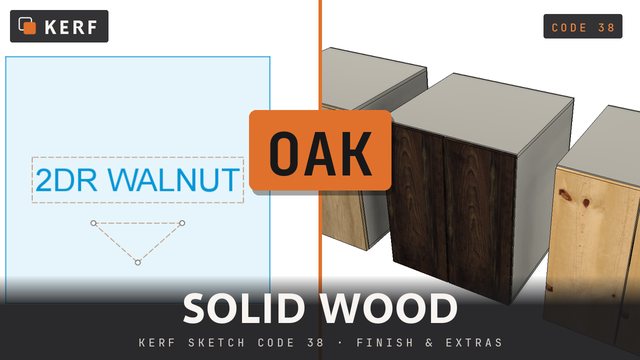

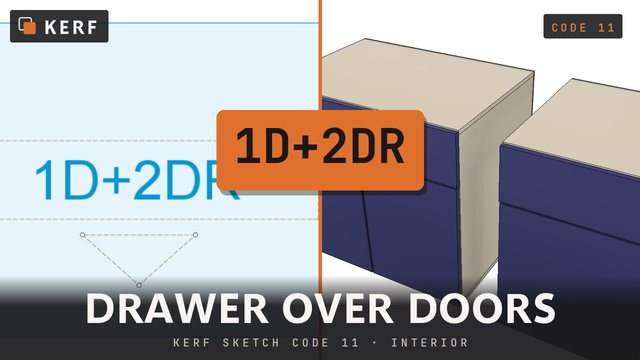

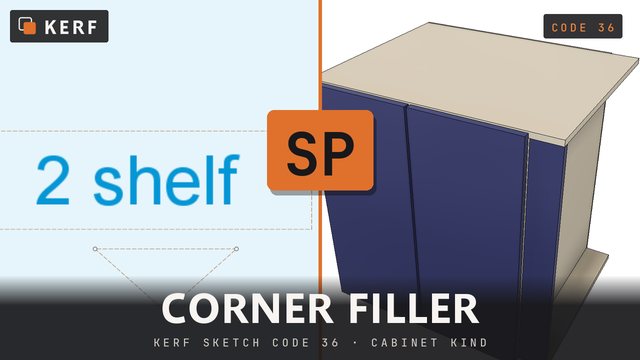

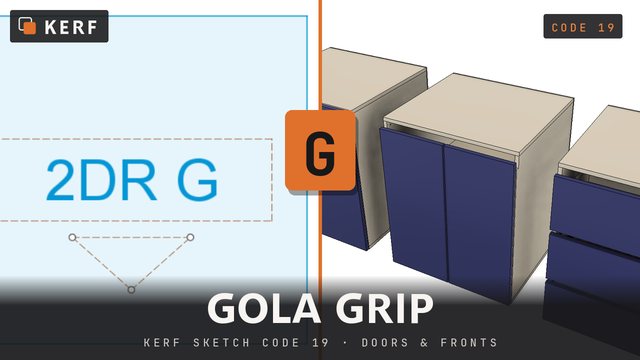

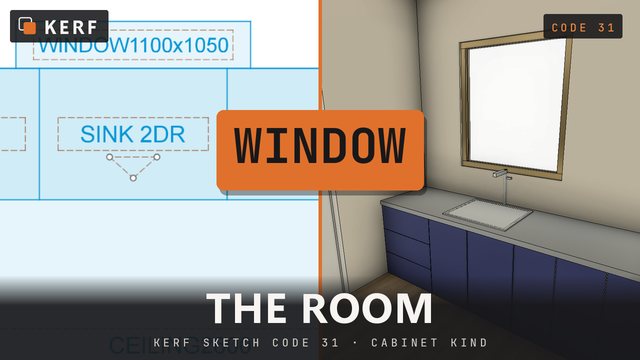

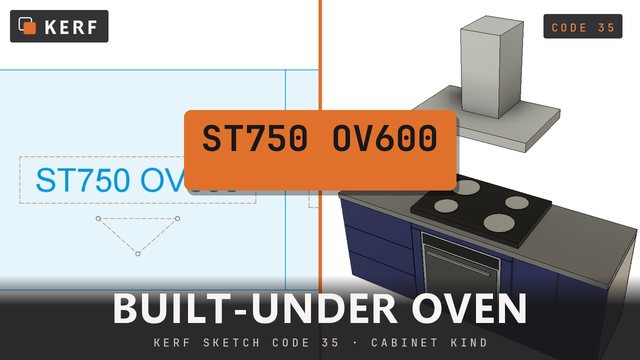

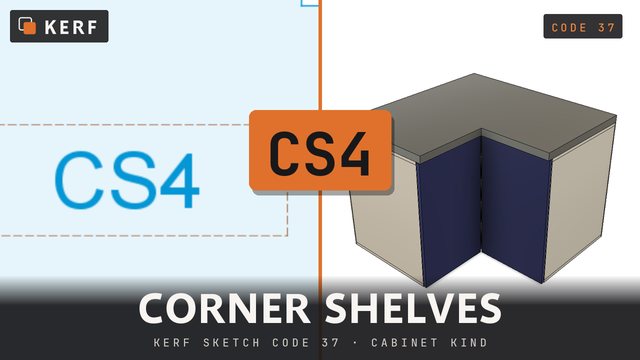

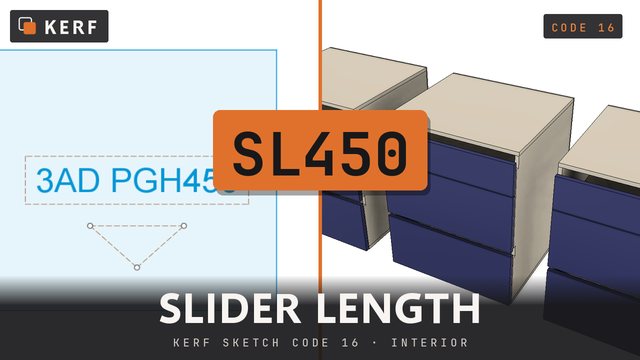

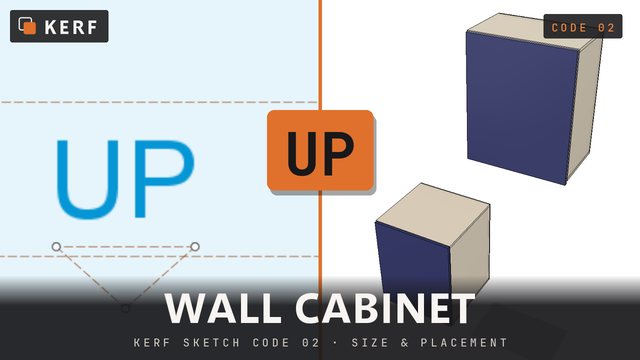

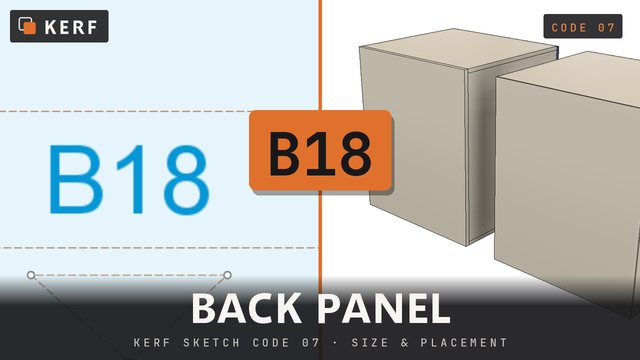

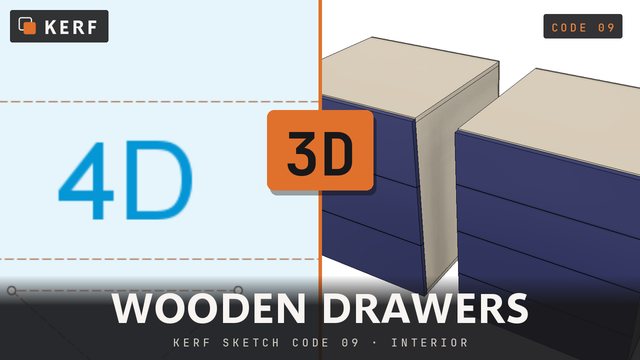

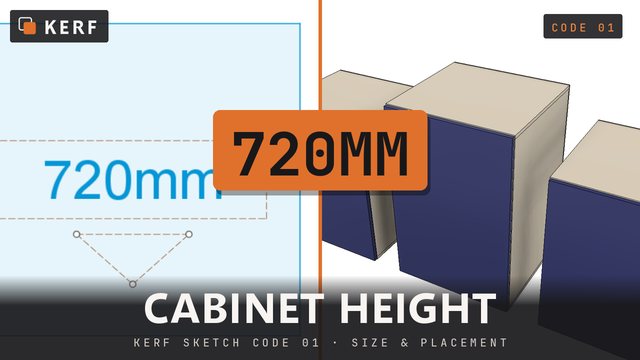

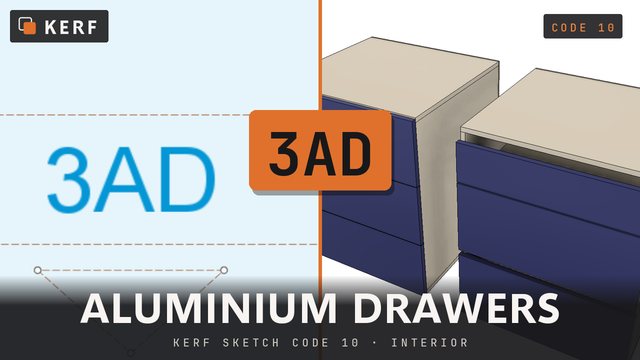

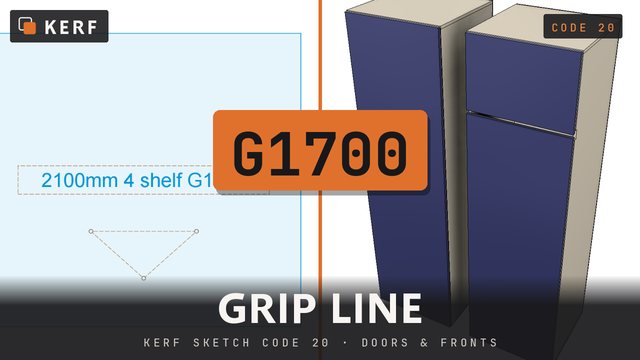

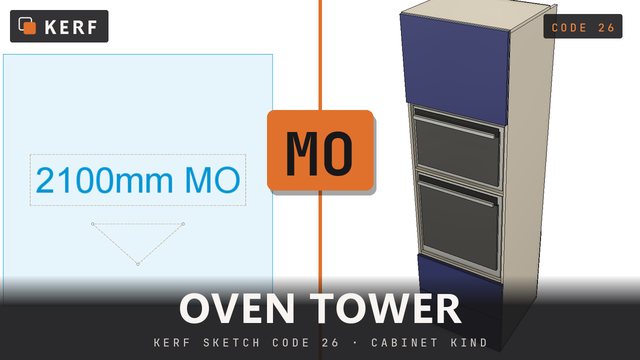

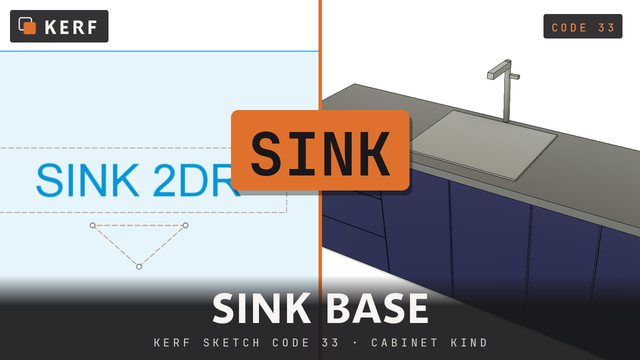

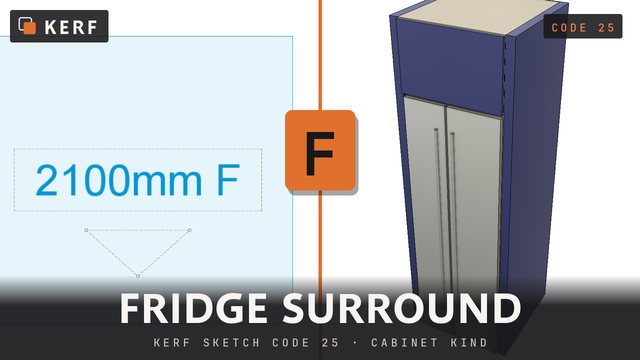

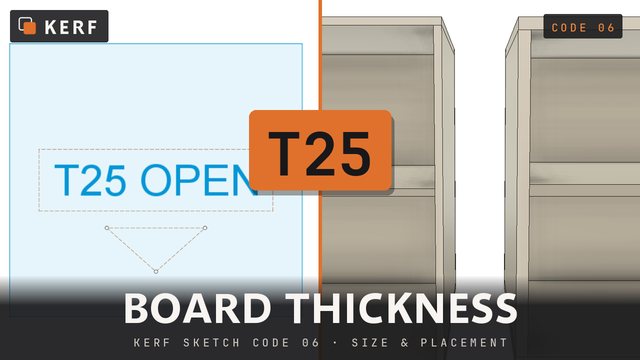

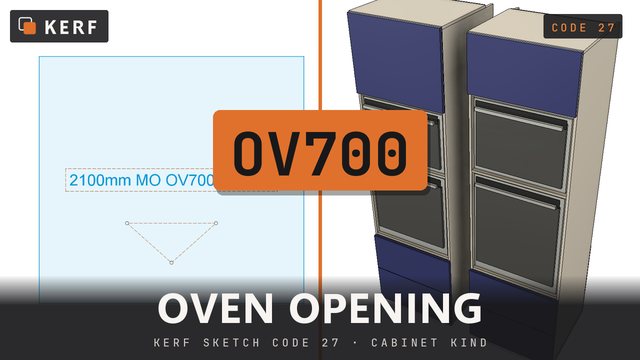

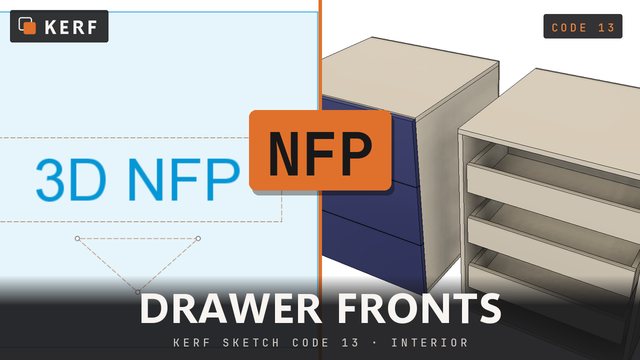

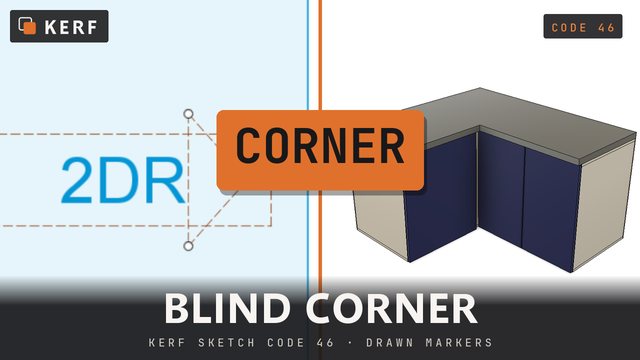

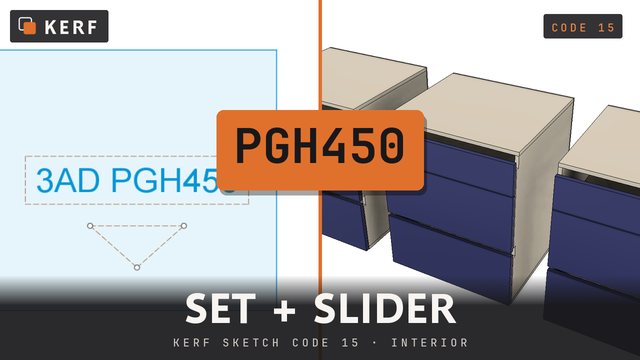

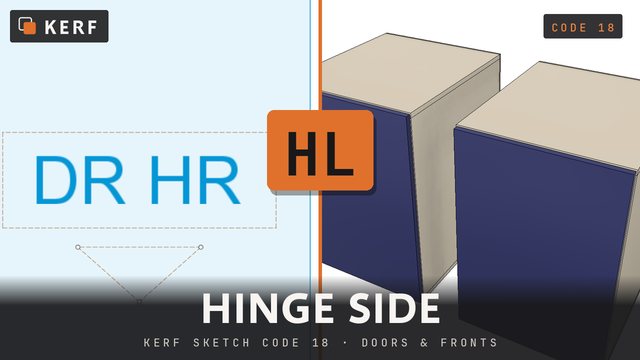

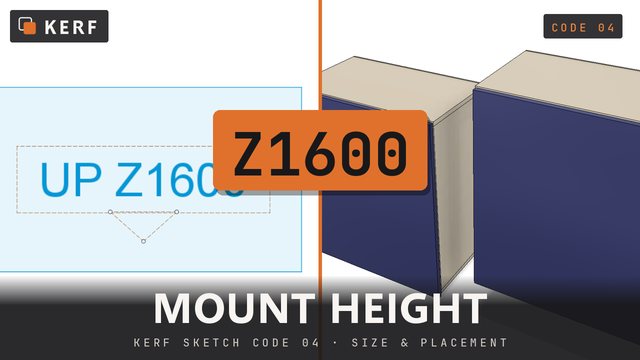

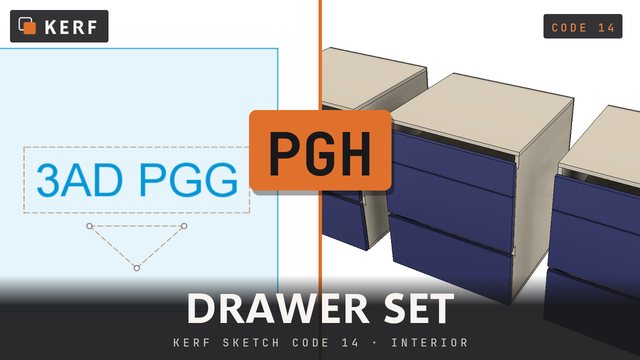

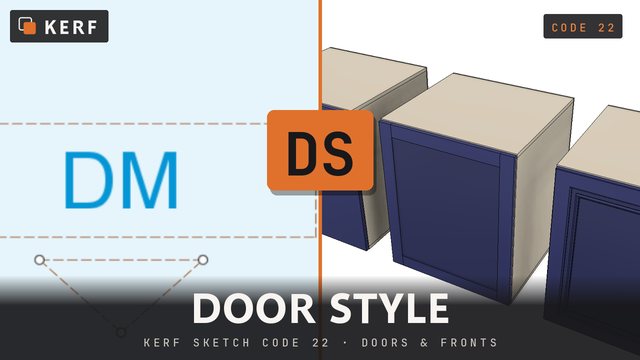

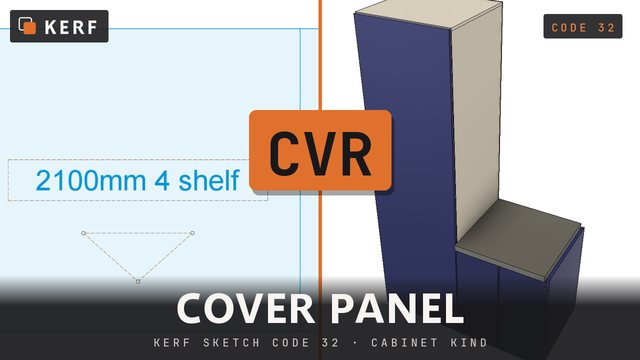

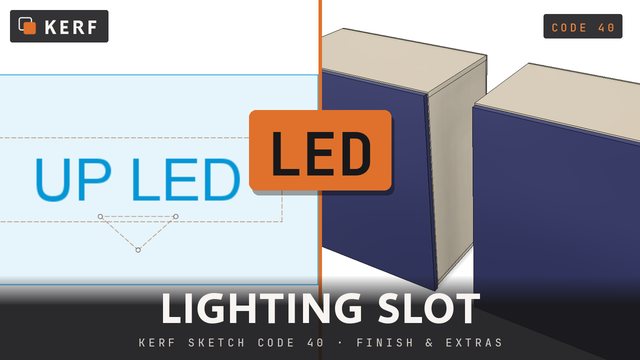

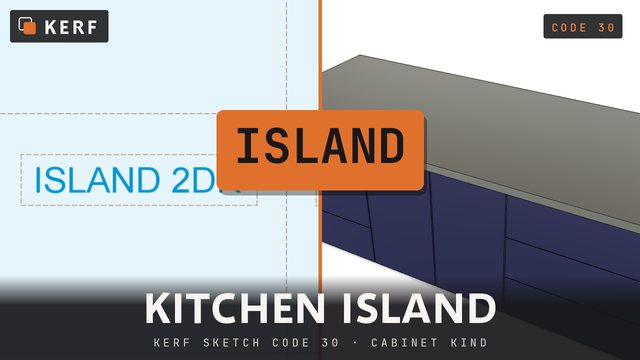

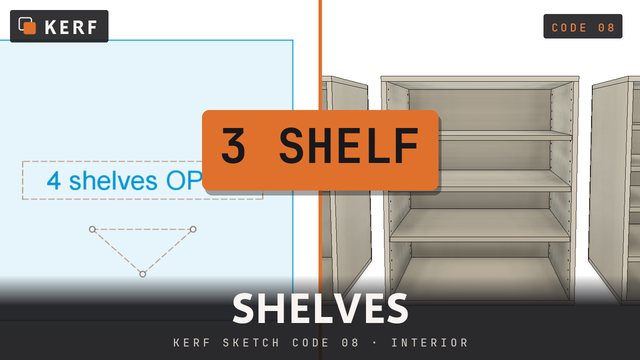

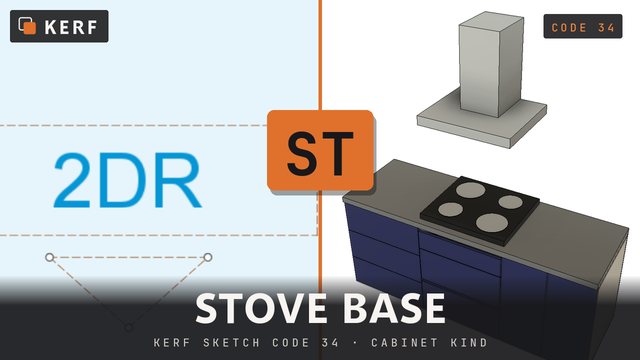

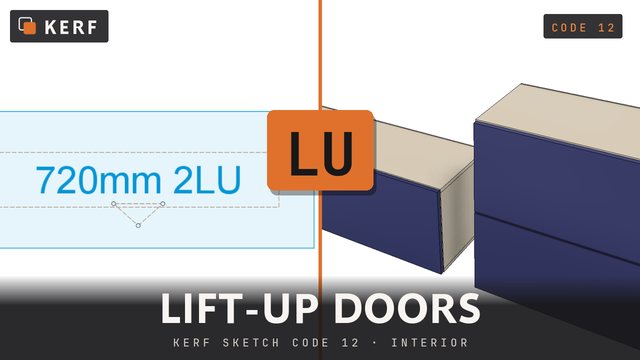

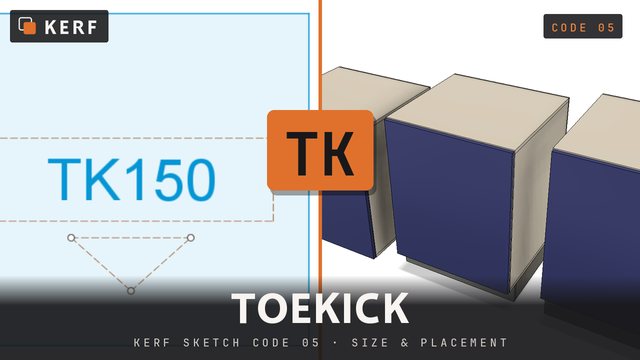

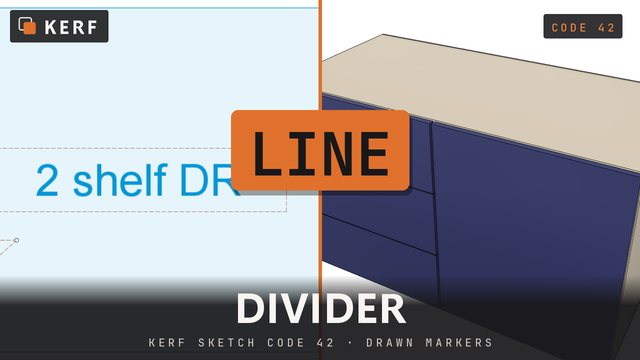

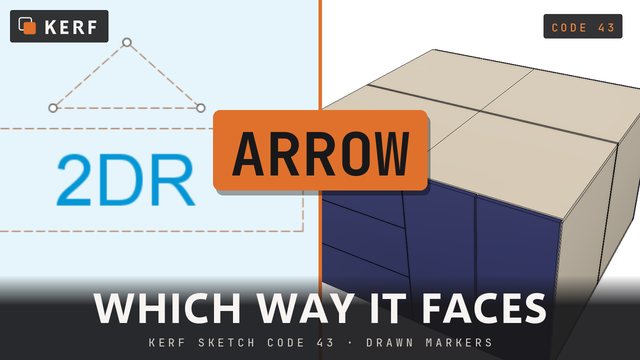

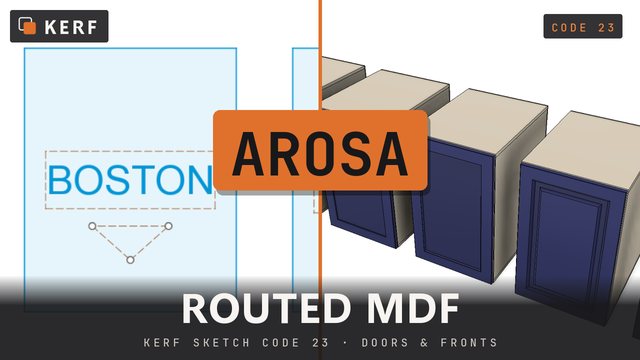

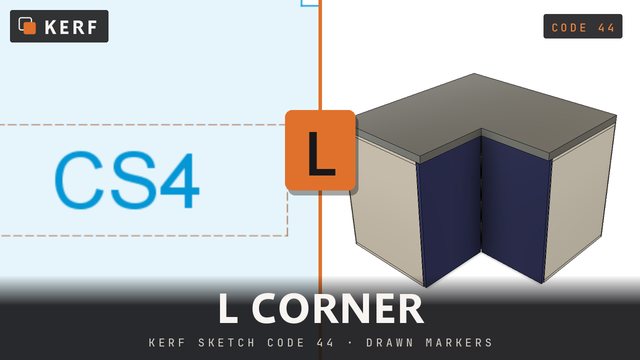

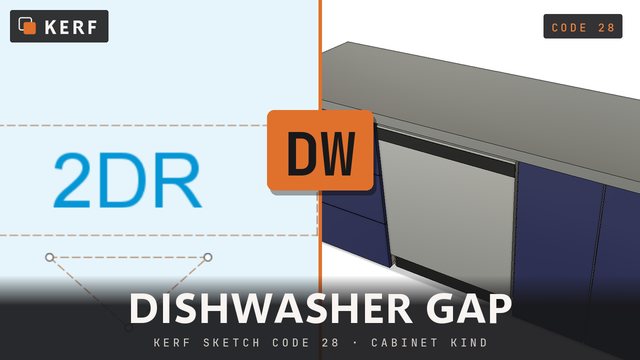

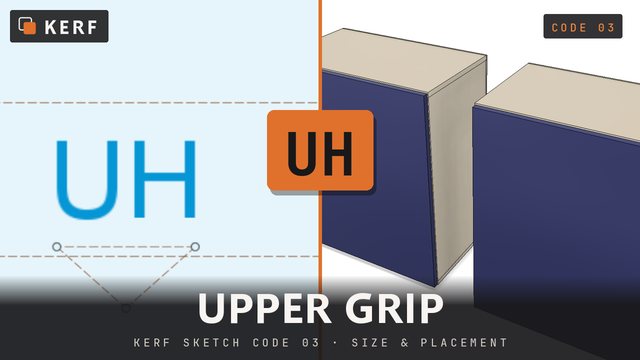

720MM: Height, cabinet by cabinet 010:52 720MM Height, cabinet by cabinet 72CM · 30IN · 30" · 720 UP: Wall cabinets from the floor plan 020:51 UP Wall cabinets from the floor plan wall cabinet from the floor plan UH: Upper grip, no extra lift 030:49 UH Upper grip, no extra lift upper handle only Z1600: Hang it exactly where you want 040:52 Z1600 Hang it exactly where you want Z1450 · mount height, mm TK: A plinth under the cabinet 050:47 TK A plinth under the cabinet TK100 · plinth height, mm T25: Board thickness, per cabinet 060:46 T25 Board thickness, per cabinet T18 · panel thickness, mm B18: Back panel thickness, per cabinet 070:46 B18 Back panel thickness, per cabinet B6 · back panel thickness, mm 3 SHELF: Shelves, by count 080:46 3 SHELF Shelves, by count 3 SHELVES · 3SHELF 3D: A bank of wooden drawers 090:43 3D A bank of wooden drawers D · wooden drawers 3AD: Aluminium gola drawers 100:50 3AD Aluminium gola drawers AD · aluminium gola drawers 1D+2DR: A drawer over the doors 110:46 1D+2DR A drawer over the doors D+DR · combo LU: Lift-up overhead doors 120:40 LU Lift-up overhead doors 2LU · lift-up overheads NFP: Drawer fronts on or off 130:44 NFP Drawer fronts on or off FP · drawer front panels PGH: The aluminium drawer set 140:53 PGH The aluminium drawer set PGG · PHH · P-G-H PGH450: Configuration and slider, one code 150:52 PGH450 Configuration and slider, one code configuration + slider length SL450: Aluminium slider length 160:53 SL450 Aluminium slider length SL400 · SL500 · SL550 2DR: One door, two, or none 170:45 2DR One door, two, or none DR · DOOR · 2DOOR · 0DR · OPEN HL: Choose the hinge side 180:41 HL Choose the hinge side HR · hinge side G: Gola handles on or off 190:46 G Gola handles on or off GOLA · NG G1700: Split a tall unit 200:50 G1700 Split a tall unit GOLA1700 · grip line, mm GL: Aluminium and glass doors 210:46 GL Aluminium and glass doors GLASS · GL20 · GL40 DS: Door style, per cabinet 220:49 DS Door style, per cabinet DM · DL AROSA: Five routed MDF doors 230:42 AROSA Five routed MDF doors MILANO · GENEVA · BOSTON · TOKYO FF: Face-frame cabinets 240:41 FF Face-frame cabinets face-frame construction F: A fridge surround 250:46 F A fridge surround FRIDGE · F1920 MO: An oven and microwave tower 260:46 MO An oven and microwave tower OM · oven + microwave tower OV700: Size the tower openings 270:52 OV700 Size the tower openings MW450 · opening heights, mm DW: Leave room for the dishwasher 280:47 DW Leave room for the dishwasher appliance gap HOOD: A hood inside the wall cabinet 290:48 HOOD A hood inside the wall cabinet HOOD60 · HOOD90 ISLAND: A kitchen island, one rectangle 300:50 ISLAND A kitchen island, one rectangle stone top + carcass box WINDOW: Walls, windows and a door 310:51 WINDOW Walls, windows and a door DOOR · CEILING · WALL CVR: A solid MDF panel 320:46 CVR A solid MDF panel CVR1200 · solid MDF panel SINK: A sink base 330:50 SINK A sink base SINK740 · bowl cutout width ST: A stove base 340:50 ST A stove base STOVE · ST750 ST750 OV600: An oven under the hob 350:58 ST750 OV600 An oven under the hob stove + oven under the hob SP: A filler for the corner 360:52 SP A filler for the corner SPACER · corner filler CS4: Shelves in an L corner 370:46 CS4 Shelves in an L corner 4CS · L-corner shelves OAK: A cabinet in solid wood 380:42 OAK A cabinet in solid wood PINE · WALNUT · MAPLE · BIRCH · MDF SAGE: Door colour, per cabinet 390:45 SAGE Door colour, per cabinet WHITE · OFFWHITE · GRAY · ANTHRACITE · BLACK · NAVY · TAUPE · GREIGE · NATURAL LED: A slot for the lights 400:45 LED A slot for the lights lighting slot MC: MDF covers, per cabinet 410:54 MC MDF covers, per cabinet NMC · MDF cover panels LINE: Split a cabinet in two 420:49 LINE Split a cabinet in two construction line, front to back ARROW: Point the cabinet where it faces 430:49 ARROW Point the cabinet where it faces triangle, base longer than its legs L PROFILE: A true L corner cabinet 440:44 L PROFILE A true L corner cabinet six corners, one profile TILT: Angled cabinets, as drawn 450:43 TILT Angled cabinets, as drawn any angle CORNER: Blind corners, found for you 460:49 CORNER Blind corners, found for you two rectangles at 90°
LEARNING PATHS

Start, build, shop, CNC.

The same four stages as the lesson plan in the Kerf docs. Each path mixes the tutorials with the code shorts that go with them.

01Start
First cabinet → first kitchen → first cut list

Build one cabinet from a single rectangle, then a small kitchen from a sketch, and get its parts on sheets.

  1. TUTORIAL 01 Your first cabinet
  2. TUTORIAL 02 Draw it, build it
  3. 720MM Height, cabinet by cabinet

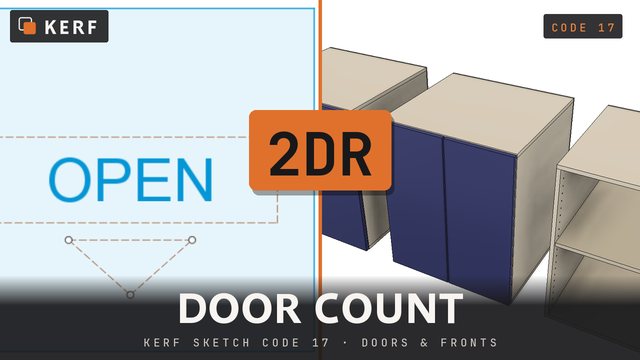

  4. 2DR One door, two, or none
  5. 3 SHELF Shelves, by count
  6. TUTORIAL 06 Cut list, nesting and paperwork
03Shop
Finishes, cut list, paperwork, pricing, photos

Give it a look, turn it into parts and paper, put a price on it that comes from the real sheet count, and show the client a photo.

  1. TUTORIAL 05 Kerf Theme
  2. TUTORIAL 06 Cut list, nesting and paperwork
  3. TUTORIAL 07 Price the job
  4. TUTORIAL 09 Photo Shoot and AI renders
  5. OAK A cabinet in solid wood

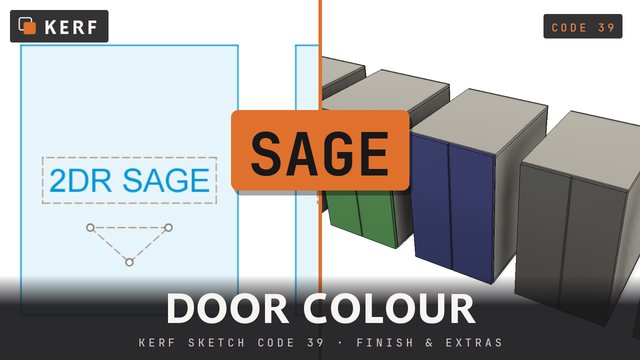

  6. SAGE Door colour, per cabinet

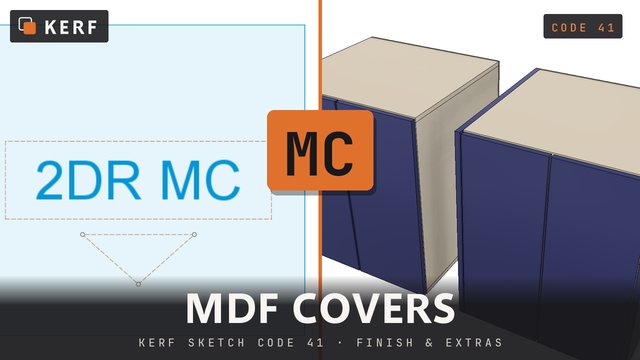

  7. MC MDF covers, per cabinet
04CNC
Setups per sheet, tabs, common line, G-code

From the nested sheets to one G-code file per tool, drilling first and the cutouts last.

  1. TUTORIAL 06 Cut list, nesting and paperwork
  2. TUTORIAL 08 Prepare CAM and post G-code
  3. T25 Board thickness, per cabinet
  4. B18 Back panel thickness, per cabinet
FAQ

Questions, answered.

Still stuck? Support or support@kerf360.com.

Which version do the videos show?

Tutorials 01 to 09 were recorded in Kerf 2.3.2, tutorials 10 to 14 on the build that became Kerf 2.4, all on small test kitchens in Autodesk Fusion. The current version is 2.6.1: a few dialog labels have moved since (the sketch-code legend is now a Sketch codes button, the language picker is in Edit Shop Standard), and the steps are the same.

Do I need to buy Kerf to follow along?

No. Kerf starts with a 30-day free trial with every command unlocked, and it is one subscription after that: every command is included, CAM too.

Where do I write the sketch codes?

Inside the rectangle, with Fusion's Text tool, in the floor-plan sketch. Separate codes with spaces, commas or new lines; case doesn't matter.

Why did a number change the cabinet height?

A number on its own is always read as the height in millimetres. Glue numbers to their codes: GL40, TK150, G1700, not GL 40.

Two codes disagree. Which one wins?

For the height, the last one wins. For the interior (shelves, drawers or a combo), the first one wins. Anything you don’t write comes from the Kerf dialog.

Where do the files go?

Cut lists, PDFs and quotes: Documents/Kerf_CutLists. G-code: Documents/Kerf_CutLists/GCode. Images: Documents/Kerf_PhotoShoots. Settings: Documents/Kerf_Settings. The log: Documents/Kerf_Logs/kerf.log.

Does it work with my machine?

Post G-code runs your setups through the post processor of your machine, one file per tool, with a RUN-ORDER.txt for the operator. Prepare CAM also writes layered DXF files for other CAM software.

Does Kerf send my designs anywhere?

No. Kerf never sends your designs. The only network call is the Autodesk App Store licence check, once per Fusion session.

Something went wrong. Where do I get help?

Email support@kerf360.com with the KERF-… error code from the error dialog: its “copy details” button copies the full report.
